Denormalization Guidelines
by Craig S. Mullins

Frequently, however, performance needs dictate very quick retrieval capability for data stored in relational databases. To accomplish this, sometimes the decision is made to denormalize the physical implementation. Denormalization is the process of putting one fact in numerous places. This speeds data retrieval at the expense of data modification.

It is not the intention of this article to promote the concept of denormalization. Of course, a normalized set of relational tables is the optimal environment and should be implemented for whenever possible. Yet, in the real world, denormalization is sometimes necessary. Denormalization is not necessarily a bad decision if implemented wisely. You should always consider these issues before denormalizing:

If the answer to any of these questions is "yes," then you should avoid denormalization because any benefit that is accrued will not exceed the cost. If, after considering these issues, you decide to denormalize be sure to adhere to the general guidelines that follow.

If enough disk space is available at your shop, create two sets of tables: one set fully normalized and another denormalized. Populate the denormalized versions by querying the data in the normalized tables and loading or inserting it into the denormalized tables. Your application can access the denormalized tables in a read-only fashion and achieve performance gains. It is imperative that a controlled and scheduled population function is maintained to keep the data in the denormalized and normalized tables synchronized.

If sufficient disk space is not available for two complete sets of tables, then maintain the denormalized tables programmatically. Be sure to update each denormalized table representing the same entity at the same time, or alternately, to provide a rigorous schedule whereby tables will be synchronized. At any rate, all users should be informed of the implications of inconsistent data if it is deemed impossible to avoid unsynchronized data.

When updating any column that is replicated in many different tables, always update it everywhere that it exists simultaneously, or as close to simultaneously as possible given the physical constraints of your environment. If the denormalized tables are ever out of sync with the normalized tables be sure to inform end-users that batch reports and on-line queries may not contain sound data; if at all possible, this should be avoided.

Finally, be sure to design the application so that it can be easily converted from using denormalized tables to using normalized tables.

Only one valid reason exists for denormalizing a relational design - to enhance performance. However, there are several indicators which will help to identify systems and tables which are potential denormalization candidates. These are:

Be aware that each new RDBMS release usually brings enhanced performance and improved access options that may reduce the need for denormalization. However, most of the popular RDBMS products on occasion will require denormalized data structures. There are many different types of denormalized tables which can resolve the performance problems caused when accessing fully normalized data. The following topics will detail the different types and give advice on when to implement each of the denormalization types.

If two or more tables need to be joined on a regular basis by an application, but the cost of the join is prohibitive, consider creating tables of pre-joined data. The pre-joined tables should:

The cost of the join will be incurred only once when the pre-joined tables are created. A pre-joined table can be queried very efficiently because every new query does not incur the overhead of the table join process.

However, pre-joined tables may quickly get out of sync with the independent tables from which they were created. Pre-joined tables are more useful for data that changes slowly, instead of more dynamic data.

Often times it is impossible to develop an end-user report using SQL alone. These types of reports require special formatting or data manipulation. If certain critical or highly visible reports of this nature are required to be viewed in an on-line environment, consider creating a table that represents the report. This table can then be queried using SQL or a query tool or report facility. The report should be created using the appropriate mechanism (application program, 4GL, SQL, etc.) in a batch environment. The data then can be loaded into the report table in sequence. The report table should:

Report tables are ideal for carrying the results of multiple joins and outer joins , correlated subqueries, or other complex SQL statements. If a complex query is coded, run, and then loaded into a table, a simple SELECT statement can be used to retrieve the results, instead of using the complex (and slower) query that was used to populate the report table.

If an application system is very active it may be necessary to split processing into two (or more) distinct components. This requires the creation of duplicate, or mirror tables. Consider an application system that has very heavy on-line traffic during the morning and early afternoon hours. This traffic consists of both querying and updating of data. Decision support processing is also performed on the same application tables during the afternoon. The production work in the afternoon always seems to disrupt the decision support processing causing frequent time outs and dead locks.

These disruptions could be corrected by creating mirror tables. A foreground set of tables would exist for the production traffic and a background set of tables would exist for the decision support reporting. A mechanism to periodically migrate the foreground data to background tables must be established to keep the application data synchronized. One such mechanism could be a batch job executing UNLOAD and LOAD utilities. Another possibility is to use the built-in replication and propagation services of SQL Server. At any rate, the data synchronization should be done as often as necessary to sustain the effectiveness of the decision support processing.

It is important to note that since the access needs of decision support are often considerably different than the access needs of the production environment, different data definition decisions such as indexing and clustering may be chosen for the mirror tables.

Also, understand that simple mirror tables may not be sufficient for your decision support needs. Perhaps you will need to create a full-blown data warehouse environment. A data warehouse, really, is just a relational database that is specifically denormalized for decision support and analytical queries.

If separate pieces of one normalized table are accessed by different and distinct groups of users or applications then consider splitting the table into two (or more) denormalized tables; one for each distinct processing group. The original table can also be maintained if other applications exist that access the entire table. In this scenario the split tables should be handled as a special case of mirror table. If an additional table is not desired then a view joining the tables could be provided instead.

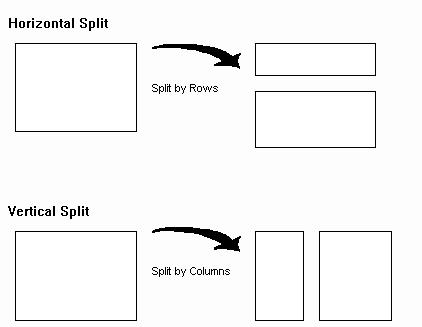

Tables can be split in one of two ways: vertically or horizontally. Refer to Figure 1. A vertical split cuts a table column-wise, such that one group of columns is placed into one new table and the remaining columns are placed in another new table. A horizontally split table is a row-wise split. To split a table horizontally, rows are classified into groups via key ranges. The rows from one key range are placed in one table, those from another key range are placed in a different table, and so on.

Vertically split tables should be created by placing the primary key columns for the old, normalized table into both of the split tables. Designate one of the two, new tables as the parent table for the purposes of referential integrity unless the original table still exists. In this case, the original table should be the parent table in all referential constraints. If this is the case, and the split tables are read only, do not set up referential integrity (RI) for the split tables as they are being derived from a referentially intact source. RI would be redundant.

When a vertical split is being done, always include one row per primary key in each split table. Do not eliminate rows from either of the two tables for any reason. If rows are eliminated the update process and any retrieval process that must access data from both tables will be unnecessarily complicated.

When a horizontal split is being done, try to split the rows between the new tables to avoid duplicating any one row in each new table. This is done by splitting using the primary key such that discrete key ranges are placed in separate split tables. Simply stated, the operation of UNION ALL, when applied to the horizontally split tables, should not add more rows than contained in the original, un-split tables. Likewise, it should not contain fewer rows either.

If tables exist with a one-to-one relationship consider combining them into a single combined table. Sometimes, even one-to-many relationships can be combined into a single table, but the data update process will be significantly complicated because of the increase in redundant data.

For example, consider an application with two tables: DEPT (containing department data) and EMP (containing employee data). Combining the two tables into a large table named, for example, EMP_WITH_DEPT. This new table would contain all of the columns of both tables except for the redundant DEPTNO column (the join criteria). So, in addition to all of the employee information, all of the department information would also be contained on each employee row. This will result in many duplicate instances of the department data. Combined tables of this sort can be considered pre-joined tables and treated accordingly.

Tables with one-to-one relationships should always be analyzed to determine if combination is useful. Oftentimes combining two tables with a one-to-one relationship is normalization, not denormalization.

Sometimes one or more columns from one table are accessed whenever data from another table is accessed. If these columns are accessed frequently with tables other than those in which they were initially defined, consider carrying those columns in those other tables as redundant data. By carrying these additional columns, joins can be eliminated and the speed of data retrieval can be enhanced. This should only be attempted if the normal access does not perform sufficiently.

Consider, once again, the DEPT and EMP tables. If most of the employee queries require the name of the employee's department then the department name column could be carried as redundant data in the EMP table. The column should not be removed from the DEPT table, though (causing additional update requirements if the department name changes).

In all cases columns that can potentially be carried as redundant data should be characterized by the following attributes:

When repeating groups are normalized they are implemented as distinct rows instead of distinct columns. This usually results in higher disk usage and less efficient retrieval because there are more rows in the table and more rows need to be read in order to satisfy queries that access the repeating group.

Sometimes, denormalizing the data by storing it in distinct columns can achieve significant performance gains. However, these gains come at the expense of flexibility. For example, consider an application that is storing repeating group information in the normalized table below:

CREATE TABLE periodic_balances

   (customer_no CHAR(11) NOT NULL,

    balance_period SMALLINT NOT NULL,

    balance DECIMAL(15,2),

    CONSTRAINT PK_cnbp PRIMARY KEY NONCLUSTERED
    (customer_no, balance_period)

   )

This table can store an infinite number of balances per customer, limited only by available storage and the storage limits of SQL Server. If the decision were made to string the repeating group, BALANCE, out into columns instead of rows, a limit would need to be set for the number of balances to be carried in each row. An example of this after denormalization is shown below:

CREATE TABLE periodic_balances

   (customer_no CHAR(11) NOT NULL,

      CONSTRAINT PK_custno NONCLUSTERED,

    period1_balance DECIMAL(15,2),

    period2_balance DECIMAL(15,2),

    period3_balance DECIMAL(15,2),

    period4_balance DECIMAL(15,2),

    period5_balance DECIMAL(15,2),

    period6_balance DECIMAL(15,2)

   )

In this example, only six balances may be stored for any one customer. The designer could just as easily chosen to store eight or twelve balances. The number six is not important, but the concept that the number of values is limited is important. This reduces the flexibility of data storage and should be avoided unless performance needs dictate otherwise.

Using the second design, all six balances can be retrieved by reading one row. Using the first design, six rows would need to be retrieved to obtain six balances.

Before deciding to implement repeating groups as columns instead of rows be sure that the following criteria are met:

If any of the above criteria are not met, SELECT statements may be difficult to code making the data less available due to inherently unsound data modeling practices. This should be avoided because, in general, data is denormalized only to make it more readily available.

If the cost of deriving data using complicated formulae is prohibitive then consider storing the derived data in a column instead of calculating it. For example, consider employee data that is scattered across multiple tables. Perhaps the database contains three columns in three different tables that store employee compensation data. These columns are SALARY, BONUS, and COMMISSION. Furthermore, assume that more often than not, queries require total compensation to be reported that is the sum of these three columns. It might make sense to include a column in the main EMP table called TOTAL_COMP that is the sum of SALARY, BONUS, and COMMISSION. This avoids multi-table joins and calculations.

However, when the underlying values that comprise the calculated value change, it is imperative that the stored derived data also be changed otherwise inconsistent information could be reported. This will adversely impact the effectiveness and reliability of the database.

Sometimes it is not possible to immediately update derived data elements when the columns upon which they rely change. This can occur when the tables containing the derived elements are off-line or being operated upon by a utility. In this situation, time the update of the derived data such that it occurs immediately when the table is made available for update. Under no circumstances should outdated derived data be made available for reporting and inquiry purposes.

A hierarchy is a structure that is easy to support using a relational database such as SQL Server, but is difficult to retrieve information from efficiently. For this reason, applications which rely upon hierarchies very often contain denormalized tables to speed data retrieval. Two examples of these types of systems are the classic Bill of Materials application and a Departmental Reporting system. A Bill of Materials application typically records information about parts assemblies in which one part is composed of other parts. A Department Reporting system typically records the departmental structure of an organization indicating which departments report to which other departments.

A very effective way to denormalize a hierarchy is to create what are called "speed" tables. Figure 2 depicts a department hierarchy for a given organization. The hierarchic tree is built such that the top most node is the entire corporation and each of the other nodes represents a department at various levels within the corporation. In our example department 123456 is the entire corporation. Departments 1234 and 56 report directly to 123456. Departments 12, 3, and 4 report directly to 1234 and indirectly to department 123456. And so on.

The table shown under the tree in Figure 2 is the classic relational implementation of a hierarchy. There are two department columns, one for the parent and one for the child. This is an accurately normalized version of this hierarchy containing everything that is represented in the diagram. The complete hierarchy can be rebuilt with the proper data retrieval instructions.

         123456

         /   \           Department Hierarchy

      1234   56

     / | \   / \

    12 3 4   5 6

    /\

   1  2

This tree structure represents a classic department hierarchy. Department 123456 represents the entire organization. Each of the other departments report to a higher department. For example, department 12 reports to department 1234 which in turn reports to the corporate office, department 123456. This can be represented in a SQL Server table as follows:

 Department Table

123456      ---

1234        123456

56          123456

12          1234

3           1234

4           1234

1           12

2           12

5           56

6           56

Even though the implementation effectively records the entire hierarchy, building a query to report all of the departments under any other given department can be time consuming to code and inefficient to process. Figure 4 shows a sample query that will return all of the departments that report to the corporate node 123456. However, this query can only be built if you know in advance the total number of possible levels the hierarchy can achieve. If there are n levels in the hierarchy then you will need n-1 UNIONs.

To retrieve all dependent departments for Department 123456:

SELECT DEPTNO

FROM   DEPARTMENT

WHERE  PARENT_DEPTNO = '123456'

UNION

SELECT DEPTNO

FROM   DEPARTMENT

WHERE  PARENT_DEPTNO IN

       (SELECT DEPTNO

        FROM   DEPARTMENT

        WHERE  PARENT_DEPTNO = '123456')

UNION

SELECT DEPTNO

FROM   DEPARTMENT

WHERE  PARENT_DEPTNO IN

       (SELECT DEPTNO

        FROM   DEPARTMENT

        WHERE  PARENT_DEPTNO IN

               (SELECT DEPTNO

                FROM   DEPARTMENT

                WHERE  PARENT_DEPTNO = '123456'))

This is complex and probably quite slow to execute.

A "speed" table can be built such as shown below:

A speed table is a denormalized version of a hierarchy. Data is replicated within a speed table to increase the speed of data retrieval. Every parent department has a row for every department that reports to it at any level, either directly or indirectly. A speed table optionally carries information such as level within the hierarchy and whether or not the given child department is at a detail most level within the hierarchy (i.e. bottom of the tree).

This table depicts the parent department and all of the departments under it regardless of the level. Contrast this to the previous table which only recorded immediate children for each parent. A "speed" table also commonly contains other pertinent information that is needed by the given application. Typical information includes the level within the hierarchy for the given node, whether or not the given node of the hierarchy is a detail node (at the bottom of the tree), and, if ordering within level is important, the sequence of the nodes at the given level.

After the "speed" table has been built, speedy queries can be written against this implementation of a hierarchy. A "speed" table is commonly built using a program written in Visual Basic or another high level language. SQL alone is usually either too inefficient to handle the creation of a "speed" table or impractical because the number of levels in the hierarchy is either unknown or constantly changing.

The following SQL shows various informative queries that would have been very inefficient to execute against the classical relational hierarchy. But they work quite effectively against the "speed" tables. These queries work for any number of levels between the top and bottom of the hierarchy.

To retrieve all dependent departments for Department 123456:

SELECT CHILD_DEPTNO

FROM   DEPARTMENT

WHERE  PARENT_DEPTNO = '123456'

To retrieve only the bottom, detail departments for Department 123456:

SELECT CHILD_DEPTNO

FROM DEPARTMENT

WHERE PARENT_DEPTNO = '123456'

AND DETAIL = 'Y'

To return a complete department hierarchy for Department 123456:

SELECT PARENT_DEPTNO, CHILD_DEPTNO, LEVEL

FROM DEPARTMENT

WHERE PARENT_DEPTNO = '123456'

ORDER BY LEVEL

We have discussed nine different types of denormalization. The list below summarizes the types of denormalization that are available with a short description of when this type of denormalization is useful.

Pre-Joined Tables used when the cost of joining is prohibitive

Report Tables used when specialized critical reports are needed

Mirror Tables used when tables are required concurrently by two

different types of environments

Split Tables used when distinct groups use different parts of a table

Combined Tables used when one-to-one relationships exist

Redundant Data used to reduce the number of table joins required

Repeating Groups used to reduce I/O and (possibly) storage usage

Derivable Data used to eliminate calculations and algorithms

Speed Tables used to support hierarchies

The decision to denormalize should never be made lightly because it involves a lot of administrative dedication. This dedication takes the form of documenting the denormalization decisions, ensuring valid data, scheduling of data migration, and keeping end users informed about the state of the tables. In addition, there is one more category of administrative overhead: periodic analysis.

Whenever denormalized data exists for an application the data and environment should be periodically reviewed on an on-going basis. Hardware, software, and application requirements will evolve and change. This may alter the need for denormalization. To verify whether or not denormalization is still a valid decision ask the following questions:

In general, periodically test whether the extra cost related to processing with normalized tables justifies the benefit of denormalization. You should measure the following criteria:

It is important to remember that denormalization was initially implemented for performance reasons. If the environment changes it is only reasonable to re-evaluate the denormalization decision. Also, it is possible that, given a changing hardware and software environment, denormalized tables may be causing performance degradation instead of performance gains.

Simply stated, always monitor and periodically re-evaluate all denormalized applications.
